圆柱滚子轴承-单列
圆柱滚子轴承-单列

商品详细介绍：
圆柱滚子轴承是一种可分离型轴承。其中，外圈与滚子是线性接触，摩擦系数小，承受径向载荷能力较大。适合于电机、汽车、传动轴、齿轮轴等。双列圆柱滚子轴承适用于机床主轴。

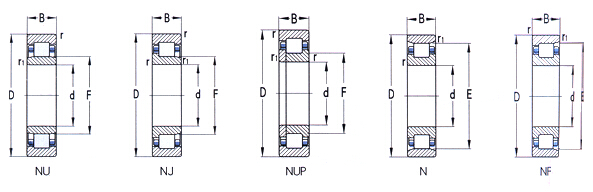

轴承型号 基本尺寸 基本额定载荷(kN) 极限转速(rpm) 重量(kg)
dxDxB 动(Cr) 静(Cor) 脂润滑 油润滑
NJ1030M 150x225x35 193 310 2600 3200 5.05
NU1030M 150x225x35 193 310 2600 3200 4.94
N230M 150x270x45 380 565 2000 2600 11.60
N230E 150x270x45 415 610 2000 2600 11.50
NU230M 150x270x45 380 565 1900 2400 11.80
NU230E 150x270x45 415 610 1900 2400 11.20
NJ230M 150x270x45 380 565 1900 2400 12.00
NUP230M 150x270x45 380 565 1900 2400 12.30
N330M 150x320x65 650 890 1700 2000 26.50
NU330M 150x320x65 650 890 1700 2000 26.60
NJ330M 150x320x65 650 890 1700 2000 26.90
NJ330EM 150x320x65 740 1010 1700 2000 26.20
NUP330M 150x320x65 650 890 1700 2000 27.40
NJ3330M 150x320x128 1200 1880 1900 2400 18.10
NF2330M 150x320x108 970 1480 1700 2000 43.60
NU2330M 150x320x108 970 1480 1700 2000 41.50
NJ2330M 150x320x108 970 1480 1700 2000 42.40

NJ2932M 160x220x36 232 435 2500 3200 4.17
N1032M 160x240x25 175 300 2800 3400 4.47
NJ1032M 160x240x38 235 380 2400 3000 6.13
NU1032M 160x240x38 235 380 2400 3000 5.96
N232M 160x290x48 450 655 1800 2200 14.30
N232E 160x290x48 470 695 1800 2200 13.90
NU232M 160x290x48 450 655 1800 2200 14.40
NU232E 160x290x48 470 695 1800 2200 14.00
NJ232M 160x290x48 450 655 1800 2200 14.20
NJ232E 160x290x48 470 695 1800 2200 14.30
NUP232M 160x290x48 450 655 1800 2200 14.60
N332M 160x340x68 685 970 1500 1800 30.80
NU332M 160x340x68 685 970 1500 1800 30.90
NJ332M 160x340x68 685 970 1500 1800 31.50
NU2232EM 160x290x80 735 1190 1800 2200 24.20
NU2322 160x290x80 625 1000 1800 2200 23.30
NU2322E 160x290x80 735 1190 1800 2200 24.70

N2332M 170x340x114 1020 1610 1500 1800 51.60
NU2332M 170x340x114 1020 1610 1500 1800 54.40
NU1034M 170x260x42 272 440 2200 2800 8.23
NJ1034M 170x260x42 272 440 2200 2800 8.47
N234M 170x310x52 500 780 1800 2200 18.20
NU234M 170x310x52 500 780 1800 2200 17.90
NJ234M 170x310x52 500 780 1800 2200 19.20
N334M 170x360x72 780 1110 1400 1700 37.30
NU334M 170x360x72 780 1110 1400 1700 37.70
NJ334M 170x360x72 780 1110 1400 1700 38.40
NU2234EM 170x310x86<, /TD> 910 1480 1800 2200 29.00
NJ2334M 170x360x120 1160 1850 1400 1700 62.50
NU2334M 170x360x120 1160 1850 1400 1700 61.10

N1036M 180x280x31 245 420 2000 2400 8.59
N1036L 180x280x31 245 420 2000 2400 7.08
N1036X2 180x280x33 310 540 1900 2200 8.44
N236M 180x320x52 505 785 1700 2000 19.70
NU236M 180x320x52 505 785 1700 2000 19.20
NJ236M 180x320x52 505 785 1700 2000 19.30
NUP236M 180x320x52 505 785 1700 2000 20.50
NJ336EM 180x380x75 1060 1360 1500 2000 42.70
NU336EM 180x380x75 1060 1360 1500 1800 42.10
N336M 180x380x75 900 1260 1500 1800 39.60
NU336M 180x380x75 900 1260 1500 1800 42.80
NU2236M 180x320x86 950 1580 1700 2000 31.40
NU2236EM 180x320x86 950 1580 1700 2000 30.30
NJ2236M 180x320x86 950 1580 1700 2000 31.90
NJ2236EM 180x320x86 950 1580 1700 2000 31.00
NUP2236M 180x320x86 950 1580 1700 2000 32.10
NJ2336M 180x380x126 1240 1850 1300 1600 72.00
NU2336M 180x380x126 1240 1850 1300 1600 69.50

NU1038M 190x260x46 375 640 2000 2600 10.90
NU238M 190x340x55 565 885 1600 1900 21.60
NJ238M 190x340x55 565 885 1600 1900 22.00
NUP238M 190x340x55 565 885 1600 1900 22.30
NJ238M 190x400x78 945 1370 1200 1500 49.40
NU338M 190x400x78 945 1370 1200 1500 48.50
N338M 190x400x78 945 1370 1200 1500 50.20
NU2238M 190x340x92 1040 1750 1600 1900 38.60

NU1040M 200x310x51 425 705 1900 2400 14.30
NJ1040M 200x310x51 425 705 1900 2400 14.70
N240M 200x360x58 625 995 1500 1800 26.80
NU240M 200x360x58 625 995 1500 1800 26.50
NJ240M 200x360x58 625 995 1500 1800 27.10
NU3340M 200x420x165 1950 3540 1200 1500 118.00
NUP3340M 200x420x165 1950 3540 1200 1500 121.00
N2240EM 200x360x98 1160 1980 1500 1800 44.90
NJ2240M 200x360x98 905 1600 1500 1800 45.50
NU2240EM 200x360x98 1160 1980 1500 1800 42.20
NUP2240M 200x360x98 905 1600 1500 1800 46.30
N2340 200x420x138 1620 2640 1200 1500 94.50

NU2944Q1 220x300x48 370 755 1900 2400 10.50
NU1044Q1 220x340x56 470 775 1800 2200 19.40
NJ1044M 220x340x56 485 810 1800 2200 19.60
N244M 220x400x65 760 1220 1500 1800 36.70
NJ244M 220x400x65 760 1220 1500 1800 35.40
NU244M 220x400x65 760 1220 1500 1800 35.00
NU344M 220x460x88 1160 1730 1000 1300 73.40
NU2244M 220x400x108 1110 1990 1300 1600 62.20
NJ2244M 220x400x108 1110 1990 1300 1600 63.30
N2344EM 220x460x145 2090 3360 1000 1300 114.00
NU2344EM 220x460x145 1970 3270 1000 1300 114.00
NU2344M/C9 220x460x145 1970 3270 1000 1300 114.00

NU1048Q1 240x360x56 495 855 1700 2000 21.20
NU248M 240x440x72 950 1540 1300 1600 46.90
NJ248M 240x440x72 950 1540 1300 1600 49.60
N348M 240x500x95 1390 2120 1000 1300 96.30
NU348M 240x500x95 1390 2120 1000 1300 96.30
NU5248/P5 240x440x146 2040 3820 1100 1400 104.00

NU1052M 260x400x65 625 1090 1500 1800 30.20
NUP1052M 260x400x65 625 1090 1500 1800 37.20
NU2052EM 260x400x82 985 1880 1300 1700 40.10
NU252M 260x480x80 1110 1800 1100 1400 67.10

NJ1056M 280x420x65 640 1140 1400 1700 32.20

NJ1060M 300x460x74 850 1510 1200 1500 45.10
NU1060M 300x460x74 850 1510 1200 1500 44.10
NU260M 300x540x85 1370 2270 1000 1300 86.90
NU360M 300x620x109 2100 3300 900 1100 166.00

NJ1064M 320x480x74 870 1580 1100 1400 47.80
NU1064M 320x480x74 870 1580 1100 1400 48.20
NU1064KM/C9 320x480x74 870 1580 1100 1400 46.30
NUP1064M 320x480x74 870 1580 1100 1400 49.10

NU1068M 340x520x82 1050 1910 1000 1300 65.00

NU3172 360x600x192 3200 6500 900 1000 219.00

NJ1080 400x600x90 1310 2470 900 1100 90.60

NU3188 440x720x226 4750 9800 600 750 374.00

NU3192 460x760x240 4950 10400 400 4800 467.00
NUP2992 460x620x95 1520 1600 800 950 85.00

NF28/530 530x650x72 1060 2890 900 1100 52.20
NUP29/530 530x710x106 1810 4550 400 500 125.00

N29/560 560x750x112 2260 5600 6500 780 138.00

NUP29/950 950x1250x175 5150 13400 140 170 616.00

NU2326M 130x280x93 790 1180 1700 2000 28.50

N330EM 150x320x65 740 1010 1700 2000 24.80
NU2330M 150x320x108 970 1480 1700 2000 43.00
