| 公制圆锥(双列) |
|
商品详细介绍：

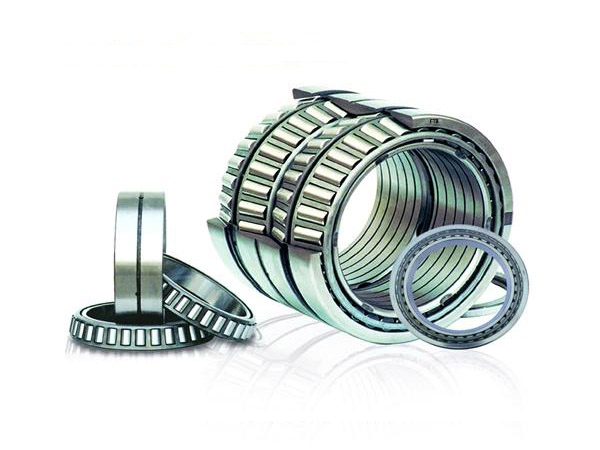

公制圆锥(双列)： 圆锥滚子轴承主要用以承受以径向载荷为主的径向与轴向联合载荷。外圈可分离，组装容易。在安装和使用过程中可以调节轴向游隙与径向游隙，可以预过盈安装。 |
|
| 轴承型号 |
基本尺寸 |
基本额定载荷(kN) |
极限转速(rpm) |
重量(kg) |

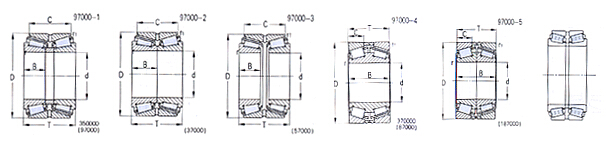

| dxDxT |
动(Cr) |
静(Cor) |
脂润滑 |
油润滑 |
| 352020 |
100x150x73 |
245 |
485 |
1800 |
2250 |
4.05 |
| 352122 |
110x180x95 |
450 |
900 |
1200 |
1600 |
9.10 |
| 352124 |
120x200x110 |
550 |
1060 |
1100 |
1500 |
12.6 |
| 352026 |
130x200x95 |
440 |
870 |
1300 |
1800 |
9.72 |
| 352126 |
130x210x110 |
550 |
1070 |
1300 |
1700 |
13.9 |
| 352926 |
130x180x73 |
258 |
565 |
1400 |
1900 |
4.87 |
| 352226 |
130x230x145 |
840 |
1700 |
1300 |
1700 |
25.6 |
| 35226EK |
130x230x150 |
890 |
1760 |
1300 |
1700 |
27.4 |
| 352028 |
140x210x95 |
455 |
950 |
1200 |
1700 |
8.36 |
| 352228X2 |
140x250x157 |
1040 |
2080 |
1200 |
1600 |
31.7 |
| 352130 |
150x250x138 |
785 |
1560 |
1100 |
1500 |
25.8 |
| 352230 |
150x270x170 |
1160 |
2330 |
1100 |
1500 |
39.4 |
| 352230--172 |
150x270x172 |
1160 |
2330 |
1100 |
1500 |
36.2 |
| 352932 |
160x220x86 |
375 |
860 |
1100 |
1500 |
8.15 |
| 352032 |
160x240x115 |
680 |
1330 |
1100 |
1400 |
16.5 |
| 352132 |
160x270x150 |
880 |
1720 |
1000 |
1400 |
28.3 |
| 423132 |
160x270x108 |
750 |
1350 |
870 |
1100 |
23.2 |
| 352232 |
160x290x180 |
1200 |
2420 |
920 |
1200 |
46.2 |
| 352034 |
170x260x128 |
685 |
1550 |
1000 |
1300 |
20.0 |
| 423134 |
170x280x110 |
800 |
1480 |
830 |
1050 |
24.4 |
| 352134 |
170x280x150 |
975 |
2000 |
950 |
1300 |
35.6 |
| 352036 |
180x280x134 |
855 |
1910 |
940 |
1300 |
28.5 |
| 352136 |
180x300x164 |
1090 |
2350 |
890 |
1200 |
39.9 |
| 352936 |
180x250x95 |
460 |
1060 |
1000 |
1300 |
13.0 |
| 432236U |
180x320x192 |
1650 |
3420 |
575 |
730 |
59.3 |
| 423036 |
180x280x93 |
640 |
1150 |
815 |
1030 |
18.9 |
| 423136 |
180x300x120 |
815 |
1535 |
780 |
990 |
30.5 |
| 352038 |
190x290x142 |
845 |
1860 |
890 |
1200 |
28.8 |
| 352138 |
190x320x172 |
870 |
1850 |
765 |
980 |
52.0 |
| 352138X2 |
190x320x170 |
870 |
1850 |
765 |
980 |
51.0 |
| 352938 |
190x260x95 |
550 |
1450 |
940 |
1300 |
13.3 |
| 352040 |
200x310x152 |
905 |
2080 |
840 |
1100 |
38.9 |
| 352140 |
200x340x184 |
1650 |
3400 |
800 |
1100 |
63.8 |
| 352940 |
200x280x110 |
610 |
1530 |
900 |
1200 |
18.1 |
| 352240 |
200x360x218 |
2140 |
4350 |
800 |
1100 |
93.3 |
| 352044 |
220x340x165 |
1250 |
2730 |
760 |
1000 |
47.7 |
| 352144 |
220x370x195 |
1530 |
3200 |
700 |
900 |
76.3 |
| 423144 |
220x370x150 |
1350 |
2780 |
700 |
900 |
61.7 |
| 352048 |
240x360x165 |
1330 |
2890 |
690 |
920 |
52.8 |
| 352148 |
240x400x210 |
1870 |
4050 |
630 |
840 |
98.1 |
| 352948 |
240x320x110 |
605 |
1590 |
760 |
1000 |
22.3 |
| 352052 |
260x400x185 |
1590 |
3750 |
630 |
840 |
79.3 |
| 352152 |
260x440x225 |
2190 |
4750 |
580 |
770 |
124 |
| 352952 |
260x360x134 |
915 |
2500 |
670 |
900 |
39.9 |
| 423152 |
260x440x180 |
1915 |
4085 |
470 |
600 |
105 |
| 370652A |
260x379.5x118 |
1100 |
2580 |
515 |
660 |
43.5 |
| 352056 |
280x420x186 |
1720 |
4000 |
580 |
770 |
81.5 |
| 352956 |
280x380x134 |
935 |
2650 |
620 |
820 |
44 |
| 352060X1 |
300x464x210 |
2040 |
4800 |
560 |
740 |
118 |
| 352960 |
300x420x160 |
1505 |
3614 |
580 |
770 |
60.8 |
| 352064 |
320x480x210 |
2310 |
5750 |
530 |
710 |
134 |
| 352964 |
320x440x160 |
1580 |
3800 |
450 |
550 |
65.5 |
| 351168 |
340x580x242 |
2820 |
6000 |
460 |
620 |
235 |
| 351068 |
340x520x180 |
1900 |
4000 |
400 |
500 |
125 |
| 351072 |
360x540x185 |
2620 |
6300 |
380 |
480 |
135 |
| 352072 |
360x540x220 |
2400 |
5880 |
345 |
450 |
162 |
| 351176 |
380x620x242 |
3100 |
6850 |
410 |
540 |
250 |
| 351080 |
400x600x206 |
2600 |
6000 |
350 |
450 |
185 |
| 351980 |
400x540x150 |
1600 |
4130 |
305 |
390 |
86.4 |
| 351184 |
420x700x275 |
4030 |
9150 |
360 |
480 |
376 |
| 351088 |
440x650x212 |
2860 |
6900 |
250 |
330 |
212 |
| 351988 |
440x600x170 |
2150 |
5100 |
255 |
340 |
125 |
| R465-1tg/UFSA+KAC2 |
465x845x410 |
9100 |
19300 |
210 |
265 |
1041 |
| 3510/500 |
500x720x236 |
3250 |
8150 |
410 |
540 |
276 |
| 3519/710 |
710x950x240 |
4300 |
13200 |
250 |
320 |
445 |
| 3519/850X2 |
850x1120x268 |
6230 |
18700 |
210 |
270 |
645 |
| 3519/950 |
950x1250x300 |
7500 |
22500 |
85 |
110 |
898 | |
|
|
