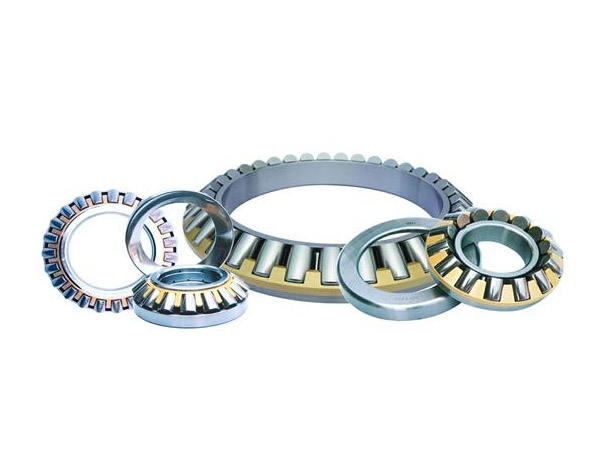

Thrust Spherical Roller Bearings
| Thrust Spherical Roller Bearings |
|
|
商品详细介绍：
推力调心滚子轴承
该类轴承滚子为球面型，由于座圈滚道面呈球面，具有调心性能。轴向负荷能力非常大，在承受轴向负荷的同时还可承受若干径向负荷。使用时一般采用油润滑。该类轴承主要应用于水力发电机、立式电动机、船舶用螺旋桨轴、塔吊、挤压机等。 |
|
| 轴承型号 |
基本尺寸 |
基本额定载荷(kN) |
极限转速(rpm) |
重量(kg) |
| dxDxT |
动(Cr) |
静(Cor) |
脂润滑 |
油润滑 |
| 29420/YA3 |
100x210x67 |
680 |
2000 |
850 |
1700 |
10.5 |
| 29320/YA3 |
100x170x42 |
340 |
1150 |
1450 |
2000 |
3.60 |
| 29322/YA3 |
110x190x48 |
440 |
1500 |
1350 |
1800 |
5.25 |
| 29422/YA3 |
110x230x73 |
840 |
2500 |
800 |
1500 |
13.3 |
| 29324/YA3 |
120x210x54 |
530 |
1750 |
1000 |
1600 |
6.88 |
| 29424 |
120x250x78 |
960 |
3000 |
750 |
1100 |
19.4 |
| 29424/YA3 |
120x250x78 |
960 |
3000 |
750 |
1100 |
19.5 |
| 29424J |
120x250x78 |
960 |
3000 |
750 |
1100 |
19.5 |
| 29426/YA3 |
130x270x85 |
1050 |
3500 |
700 |
1100 |
23.0 |
| 29326/YA3 |
130x225x58 |
610 |
2050 |
950 |
1500 |
8.26 |
| 29328/YA3 |
140x240x60 |
675 |
2150 |
880 |
1400 |
10.4 |
| 29428/YA3 |
140x280x85 |
1250 |
3850 |
670 |
950 |
22.7 |
| 29428J |
140x280x85 |
1250 |
3850 |
670 |
950 |
22.7 |
| 29330/YA3 |
150x250x60 |
750 |
2350 |
850 |
1400 |
10.8 |
| 29430/YA3 |
150x300x90 |
1280 |
4250 |
630 |
900 |
27.3 |
| 29332/YA3 |
160x270x67 |
850 |
2800 |
800 |
1300 |
14.3 |
| 29432/YA3 |
160x320x95 |
1500 |
5000 |
560 |
800 |
33.3 |
| 29334/YA3 |
170x280x67 |
880 |
2950 |
750 |
1200 |
14.8 |
| 29434/YA3 |
170x340x103 |
1650 |
5500 |
530 |
750 |
40.7 |
| 29336/YA3 |
180x300x73 |
1000 |
3400 |
720 |
1200 |
19.4 |
| 29436/YA3 |
180x360x109 |
1800 |
6000 |
515 |
750 |
42.3 |
| 29436J |
180x360x109 |
1800 |
6000 |
515 |
750 |
42.3 |
| 29338/YA3 |
190x320x78 |
1150 |
3850 |
680 |
1100 |
23.1 |
| 29438/YA3 |
190x380x115 |
2000 |
6500 |
500 |
735 |
60.1 |
| 29340/YA3 |
200x340x85 |
1280 |
4500 |
650 |
1050 |
28.5 |
| 29440/YA3 |
200x400x122 |
2200 |
7500 |
465 |
700 |
69.2 |
| 29244/YA3 |
220x300x48 |
484 |
910 |
750 |
1050 |
7.92 |
| 29348/YA3 |
240x380x85 |
1350 |
5200 |
600 |
920 |
35.5 |
| 29448/YA3 |
240x440x122 |
2400 |
8150 |
440 |
680 |
74.5 |
| 29252M/YA3 |
260x360x60 |
798 |
1550 |
530 |
750 |
15.7 |
| 29352 |
260x420x95 |
1700 |
6500 |
550 |
880 |
48.5 |
| 29452 |
260x480x132 |
2650 |
9850 |
400 |
650 |
105 |
| 29256 |
280x380x60 |
870 |
4000 |
500 |
700 |
19.1 |
| 29356 |
280x440x95 |
1800 |
7000 |
530 |
750 |
49.1 |
| 29260 |
300x420x73 |
1050 |
5050 |
450 |
650 |
30.0 |
| 29360 |
300x480x109 |
2050 |
8000 |
500 |
700 |
74.2 |
| 29264 |
320x440x73 |
1150 |
5600 |
420 |
600 |
32.5 |
| 29464 |
320x580x155 |
3500 |
13500 |
350 |
550 |
115 |
| 29268/YA3 |
340x460x73 |
1250 |
5800 |
400 |
600 |
31.4 |
| 29468 |
340x620x170 |
4000 |
15500 |
315 |
520 |
218 |
| 29372/YA3 |
360x560x122 |
2550 |
10000 |
350 |
550 |
107 |
| 29472 |
360x640x170 |
4300 |
16800 |
300 |
500 |
228 |
| 29280 |
400x540x85 |
1520 |
7750 |
375 |
500 |
55.1 |
| 29380 |
400x620x132 |
3200 |
12500 |
300 |
500 |
150 |
| 29480 |
400x710x185 |
5350 |
20150 |
275 |
465 |
306 |
| 29284/YA3 |
420, x580x, 95 |
2060 |
10000 |
340 |
480 |
78.9 |
| 29488EM/YA3 |
440x780x206 |
6200 |
24800 |
250 |
400 |
407 |
| 292/500/YA3 |
500x670x103 |
2500 |
11500 |
300 |
450 |
100 |
| 294/500 |
500x870x224 |
6930 |
27700 |
230 |
340 |
462 |
| 292/530 |
530x710x109 |
2720 |
14000 |
275 |
420 |
122 |
| 292/560 |
560x750x115 |
3100 |
16600 |
250 |
380 |
131 |
| 294/600 |
600x1030x258 |
9500 |
40500 |
200 |
250 |
896 |
| 292/630YA3 |
630x850x132 |
3880 |
20250 |
220 |
300 |
231 |
| 294/670 |
670x1150x290 |
11000 |
54500 |
150 |
180 |
1214 |
| 292/710/YA3 |
710x950x145 |
4060 |
22500 |
180 |
240 |
279 |
| 294/750YA3 |
750x1280x315 |
14850 |
63500 |
100 |
120 |
1340 | |
|
|
